The Basement Doctor of Cincinnati Before & After Photos

This basement in Lynchburg, OH, had a problematic wall that would constantly leak at the coves every time it rained. We installed our minimally invasive interior perimeter waterproofing system to stop the leaks. Including in this system are our subfloor WaterGuard drains and our SuperSump sump pump.

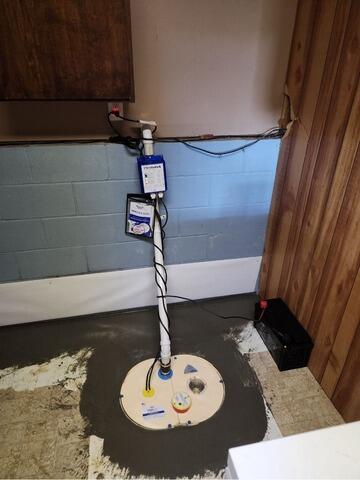

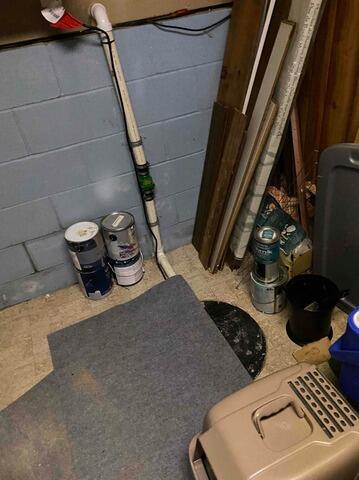

A Russellville, Ohio homeowner was having problems with water seeping into the basement. We recommended a WaterGuard basement waterproofing system and a SuperSump sump pump to be installed. WaterGuard is an interior under the floor drainage system, which is installed around the perimeter of the foundation walls to intercept water that seeps into the basement. The water will then be drained into the SuperSump sump pump System. The SuperSump has a 1/3HP cast iron pump that can pump 2,650 gallons of water an hour at an eight foot head. The WaterWatch alarm sounds if the water reaches too high and the pump hasn't yet turned on. This will alert the homeowner that there is a problem with the system. The SuperLiner sump liner is a rugged, heavy-duty liner that will not crack or cave in, and has 96 holes to allow water to flow in from below the floor. It also features a "pump ring" that centers the pump in the liner to prevent the switch from hanging up on the sidewalls. It also has an airtight lid that will keep water moisture from seeping back into the basement. The lid is also so strong you can stand on it. With the WaterGuard intercepting the water and the sump pumping it out of the basement, this homeowner will be able to use the basement without worrying about water intrusion.

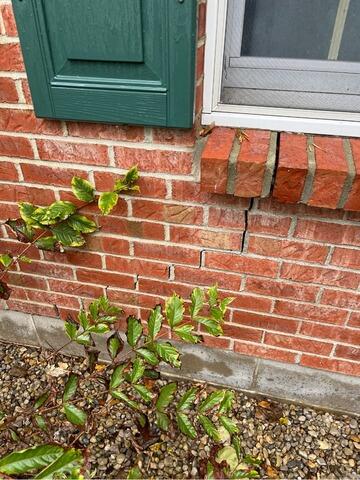

This home's foundation in Russellville, OH, was settling which caused cracks to form in the home's brick exterior. The biggest crack, (as seen in the before photo) started at the bottom left corner of the window and traveled downward in a stair step pattern toward the left. Stair step patterned cracks often appear in brick exteriors when the foundation starts to move. The mortar is usually the first thing to break because it is the weakest point in the wall. You’ll often see these cracks and gaps forming around windows and doors as well, since those openings create naturally weaker structural points that tend to show stress first when the foundation shifts. To stabilize the home, we installed our helical piers straight down underneath the foundation, and then we used our hydraulic device to lift the foundation back up to close the cracks. When we finished the project, we were able to guarantee to the homeowner that the home won't ever settle again where we installed our piers for the lifetime of the structure.

We wrapped this entire basement in Cedarville, OH, with WaterGuard drains to provide the homeowners with a proper lifelong basement drainage system. We also installed our premiere TripleSafe sump pump to provide ultimate protection against leaks. The WaterGuard drains will collect water from the weeping holes in the cove joints, and will direct the water towards the sump pump through the power of gravity. The TripleSafe will then discharge the water far away from the foundation. The TripleSafe has three separate pumps including a battery backed one. This basement is now safe from leaks.

We installed our CleanSpace system in this Aberdeen, OH, home to create a vapor barrier in this homeowner’s crawl space. These durable liners don’t just keep out moisture—they also help block pests, critters, and cold air from entering the space. A crawl space is an important part of your home’s environment, and sealing it properly ensures the air that rises into your living area stays clean, dry, and comfortable.
